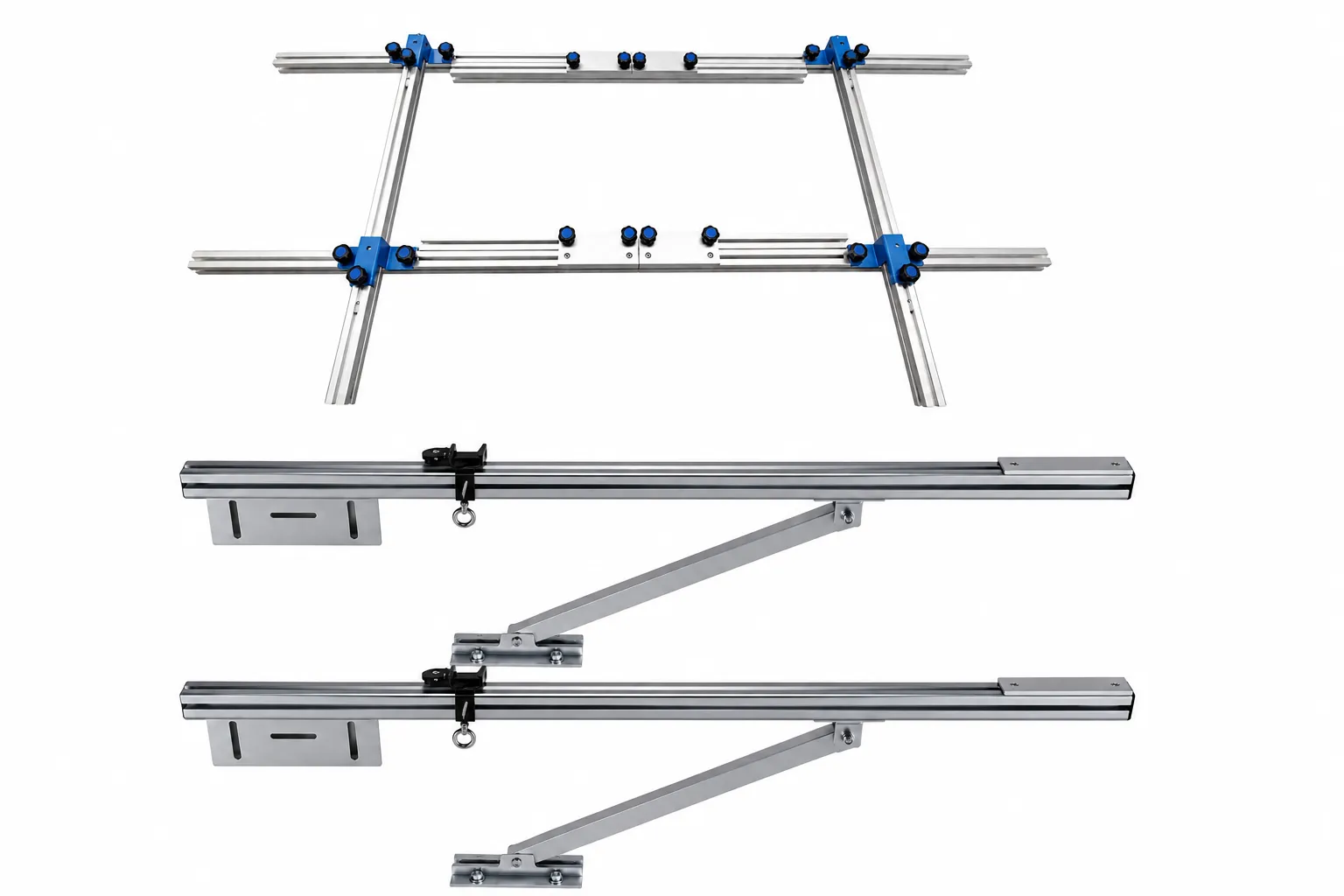

Universal Plumb Line Kit
Precision plumb line jig engineered for easy adjustment and accurate rail and door line installation. The lightweight Universal Plumb Line kit has been designed to attach and adjust with ease thanks to its lightweight robust support brackets and versatile frame, it easily attaches at your desired height by mounting directly to the elevator landing entrance.
About the Universal Plumb Line Kit
The Universal Plumb Line Kit is a precision plumbing jig for setting out guide rail and landing door lines in the lift shaft. It mounts directly to the elevator landing entrance at your desired height, with lightweight, robust support brackets.
Laser-etched measurement markings, hand-tightened adjustment knobs and a DBG adjustment range of 1200mm to 2400mm make setup fast, tool-free and repeatable on every lift installation.
Key features
- Precision laser-etched measurement markings for accurate setup and repeatability
- Fully adjustable design to suit a wide range of applications
- DBG adjustment range from 1200mm to 2400mm
- Lightweight, heavy-duty aluminium construction for strength and portability
- Quick and simple setup for efficient installation on site
- Hand-tightened adjustment knobs for fast, tool-free positioning
- Supplied with heavy-duty support brackets offering a wide adjustment range
- Designed for accurate alignment, easy handling and reliable field performance
Applications
- Shaft alignment
- Rail setting verification
- Commissioning checks
